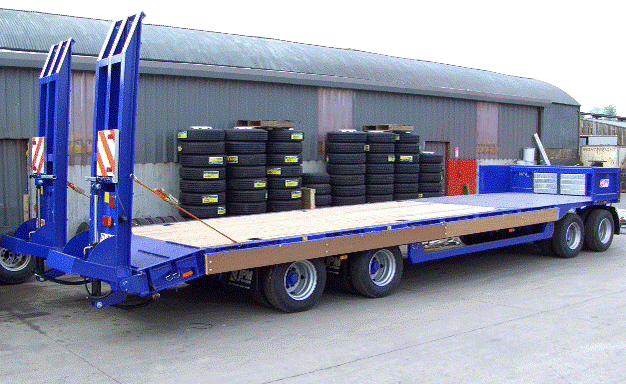

LL40 low loader

Standard design

Capacity: 38 tons total weight
Load capacity: 30 tons
Dimension: 6.50m + 1.25m long, 2.53m wide, loading floor height: 90cm
Hydraulic ogaze valves, closed
8-double spring packs, ADR axles 105km/h, 300×135 brake shoes
Tires 235/75 R19.5
3 axles hydraulically braked
Hooking up
5cm thick wooden floor
Front axles on platter
Side lighting
Choice of 4 colors: red, green, blue and black


Paper COC (mandatory air brake option)
Air brakes
Combi brakes (air/hydro)
Load control valve for air brakes
Load control valve for hydraulic brakes
Hydraulic ramps to flat floor
Hydraulic disaster flip toe, 2-piece
Extend trailer on the flat piece 1m
Wider disasters
Longer disasters
Width hydraulically adjustable ramps
Dual lighting
Hydraulic support leg
Manual support leg, heavy model (as in fast traffic)
Scharmüller K80
Spare wheel
Hardwood floor
Mechanical suspended drawbar
Air suspension
Steered axle
4 x wide plates + LED lighting
Removable triangle for flat floor
D-ring in floor
D-ring in side
Opening in floor for fixing post
Fixing post 50cm
Rear tow bar + 7-pin plug
Flat center piece in sloping back floor
Open tool case
Tires 445/45×19.5 Super Single instead of 235/75×17.5 (note height + 10cm)
