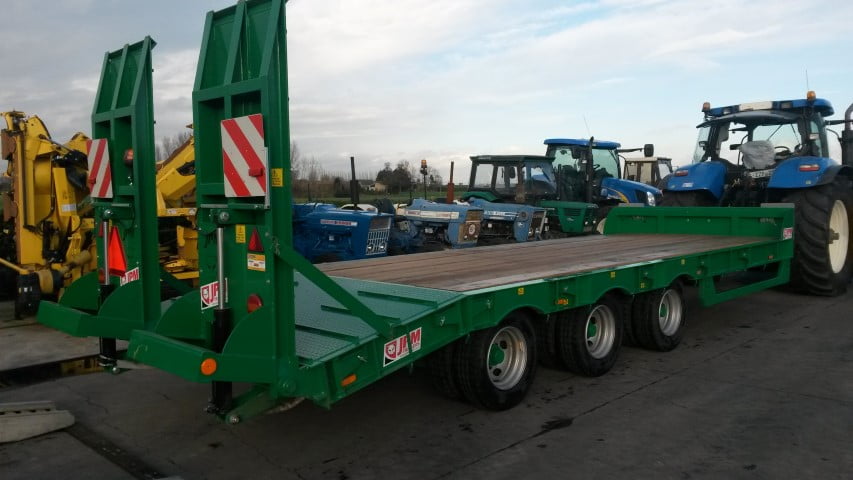

Trailer LL33

Standard design

Capacity: 33 tons total weight
Load capacity: 24 tons
Dimension: 6.50m + 1.25m long, 2.53m wide, loading floor height: 90cm
26cm chassis beams, 16cm side chassis beams, 10cm sleepers
Hydraulic ramp valves
8-double suspension packages, ADR axles, fast traffic 105km/h, 300×135 brake shoes
235/75×17.5 tires around dual mounts
3 axle combination brakes (air/hydro)
Hooking up
5cm thick wooden floor

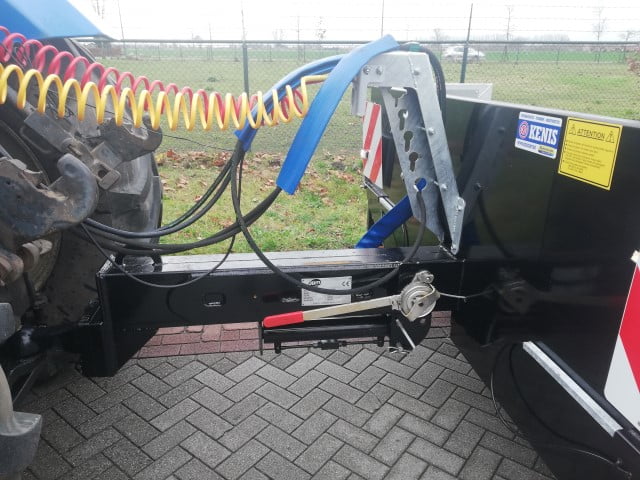

Fixed drawbar with fixed drawbar eye at 55cm height
Side lighting
Support leg
Choice of 4 colors: red, green, blue, black


Paper COC (mandatory air brake option)
Air brakes
Combi brakes (air/hydro)
Air brakes only
Hydraulic brakes only
Load control valve for air brakes
Load control valve for hydraulic brakes
Hydraulic ramps to flat floor
Hydraulic disaster flip toe, 2-piece
Extend trailer on the flat piece 1m
Wider disasters
Longer disasters
Width hydraulically adjustable ramps
Dual lighting
Hydraulic support leg
Manual support leg, heavy model (as in fast traffic)
Scharmüller K80
Spare wheel
Hardwood floor
Mechanical suspended drawbar
Air suspension
Steered axle
4 x wide plates + LED lighting
Removable triangle for flat floor
D-ring in floor
D-ring in side
Opening in floor for fixing post
Fixing post 50cm
Rear tow bar + 7-pin plug
Flat center piece in sloping back floor
Open tool case
Tires 445/45×19.5 Super Single instead of 235/75×17.5 (note height + 10cm)
